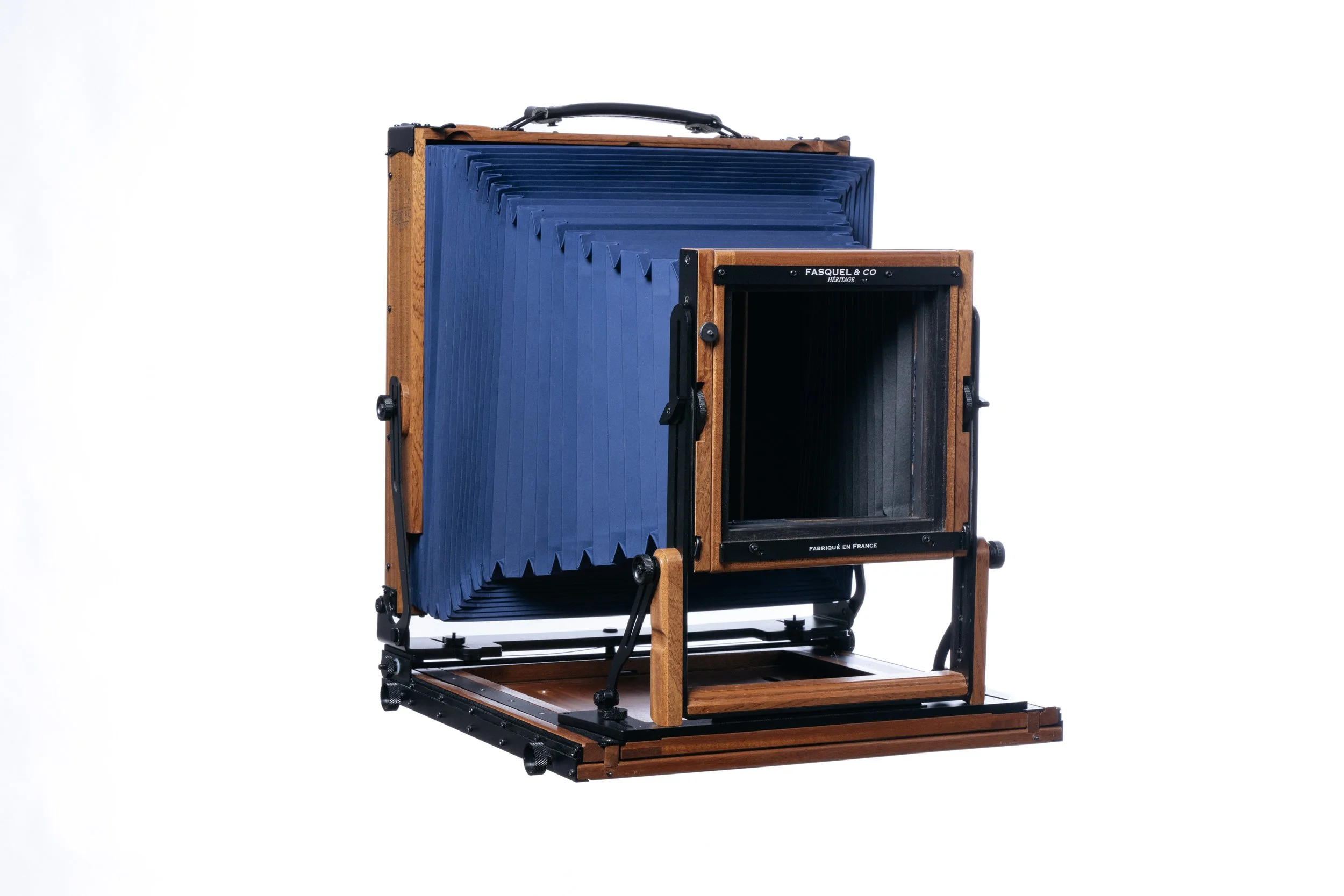

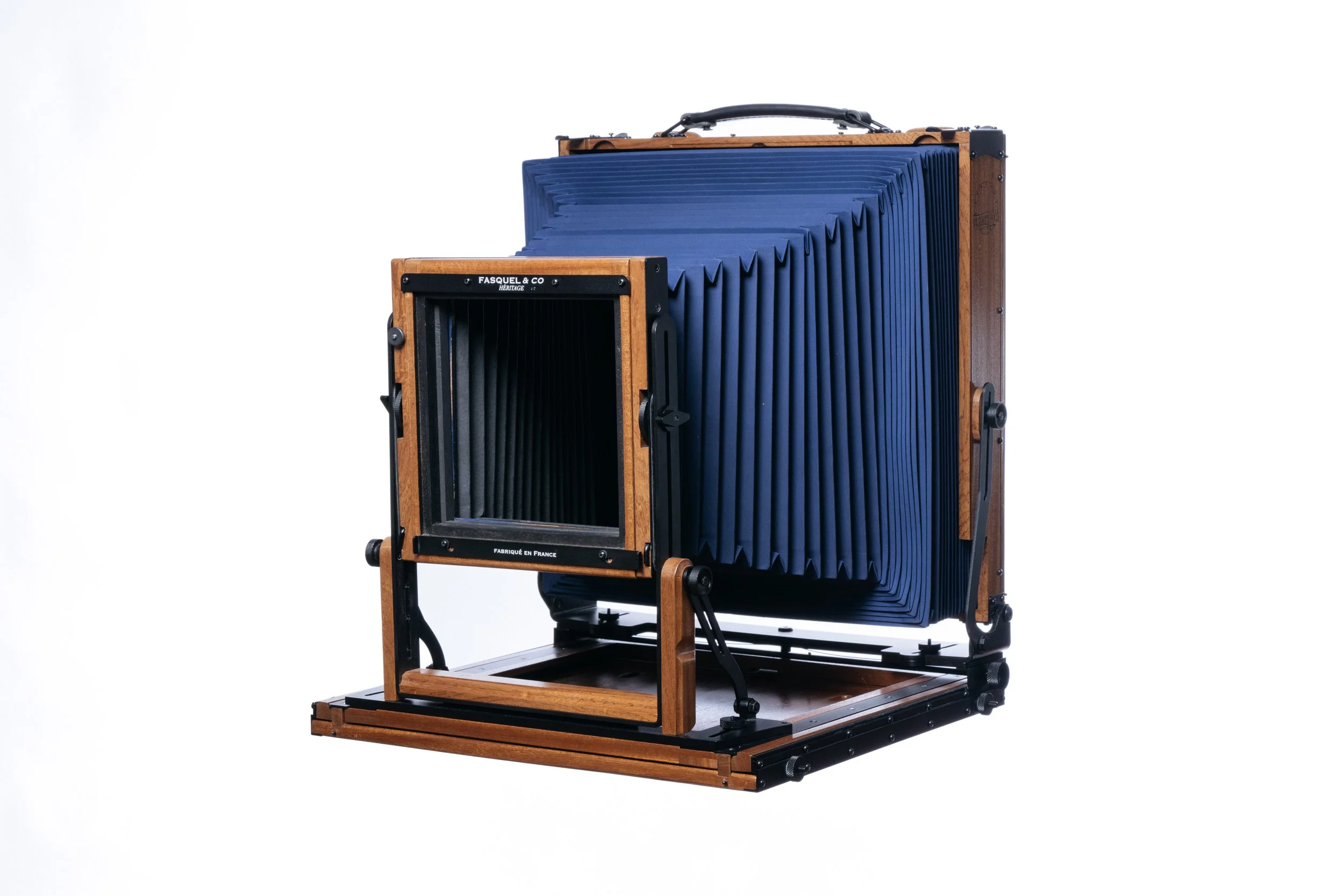

11x14 Heritage
Made out of mahogany, black anodized aluminium and steel, this is an extremely sturdy 11x14 camera, especially the front standard that can holds the heaviest lenses !
Specs :
Folded size : 450 (480 with knobs) x 410 x 120mm.
Weight : 9.5 kg
Maximum extension : 1150mm
Minimum extension : 80mm
Front :
-Rise : 125mm
-Fall: 75mm
-Swing : +/- 20 degrees
-Tilt : limited by bellow
Front rise/fall and tilt are independant movments.
With a strong tilt zeroing for super heavy lenses, or fast use.
Lensboard are 204x204mm (Chamonix)
Rear :
-Swing : +/- 20 degrees
-Tilt : backward : 20 degrees, forward limited by bellow
With bright groundglass and Fresnel lens
Portrait or landscape reversible back
Reducer for 8x10 on request
